PMSM FAN

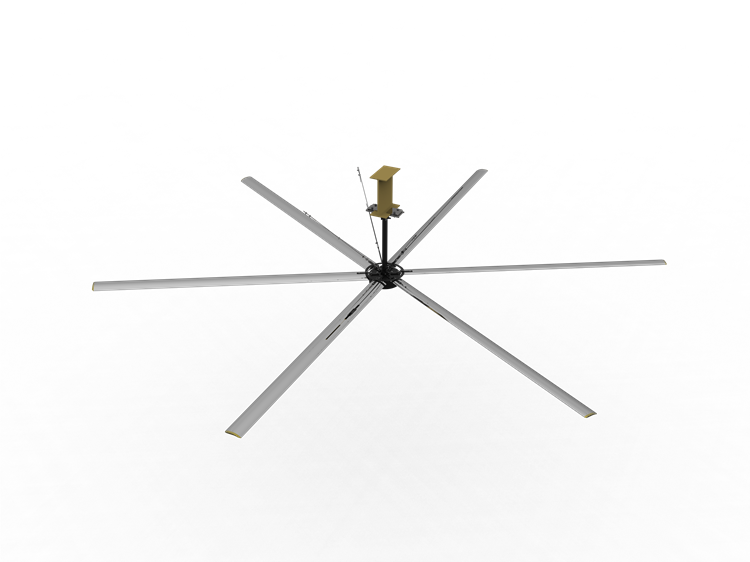

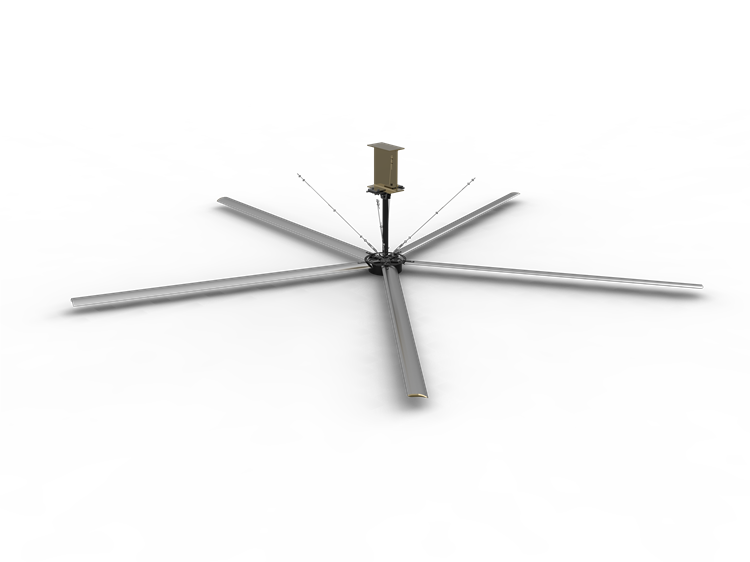

Five Blades 3.3~ 7.3m Large Industrial HVLS Ceiling Fan

The LX-PMSM series use PMSM (permanent magnet synchronous motor) technology and the maximum diameter is 7.3 meters. The full-load air volume reaches 15680m³/min, which exceeds the air volume of conventional products by more than 30%.

It can promote the circulation of space airflow at higher efficiency, achieve the purpose of cooling personnel, and improve environmental comfort.

Product Description:

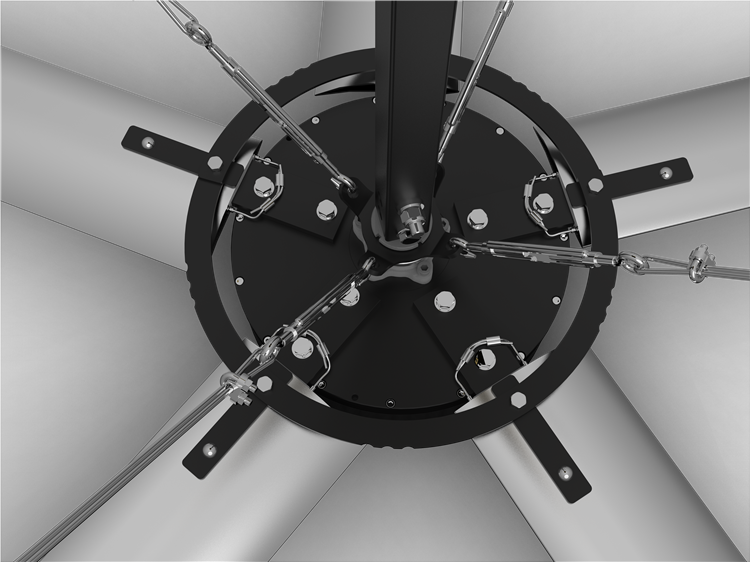

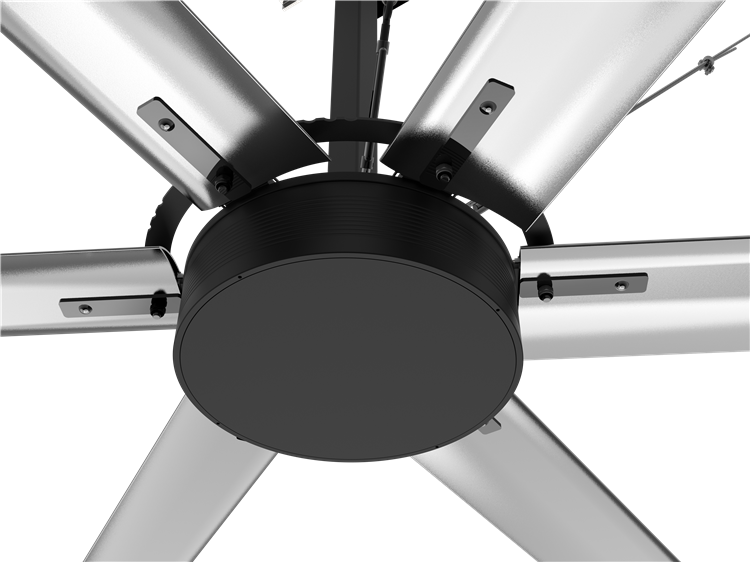

PMSM Motor:

The design of Liangxin's PMSM motor borrows from the design process of elevator motors. At  present, our fan factory is the only manufacturer in China that owns the whole process of the  core components of the permanent magnet synchronous axial magnetic fifield motor fan. Using  the working principle of the elevator motor, the linear traveling wave is converted into a rotating  magnetic fifield to produce a PMSM motor. Mastered the production process of PMSM motor, and  established the whole process self-made production process of the core components of permanent magnet synchronous axial magnetic fifield motor fan.


Possess a full set of mature producing and testing equipment: fan parts machining workshop,  motor stator production line, motor rotor production line, motor flflexible assembly line,  equipped with 3 automatic iron core punching and coiling machines, 3 full computer winding  machines, Japanese Maza One gram 8800 horizontal machining center, one 5-axis ABB welding  robot, one 8kw row laser cutting machine, 14 Taiwan Youji vertical lathes and 11 Taiwan Yongjin  vertical machining centers, also equipped with three coordinates Testing, automatic dynamic  balance testing machines and other equipment provide superior and reliable guarantees for  industrial fans in terms of product design and development, processing accuracy, quality  control, and technical optimization.


Fan Blades:

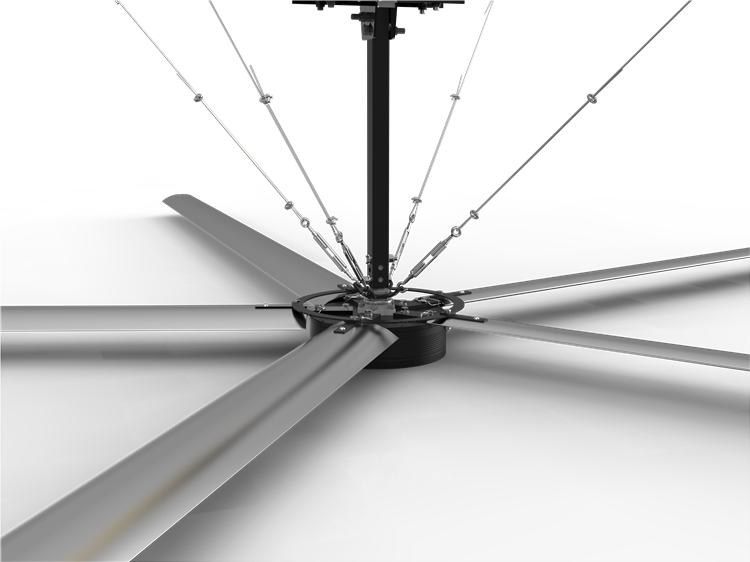

Using high-strength aluminum-magnesium  alloy fan blades, and adding a unique safety  design, each fan blade has a safety wire  rope. Lifespan up to ten years.


Controller:

Two controllers are available:

 1)Integrate controller

Smart panel, small size, convenient operation Chip control system

Waterproof and dustproof grade IP54

Short circuit protection, leakage protection  and other functions


2)ABC VFD controller

Using ABC brand converter

Can connect to Fire Protection Systems, Building Systems and etc.

Anti-electromagnetic interference

Waterproof and dustproof grade IP54

Short circuit protection, leakage protection and other functions

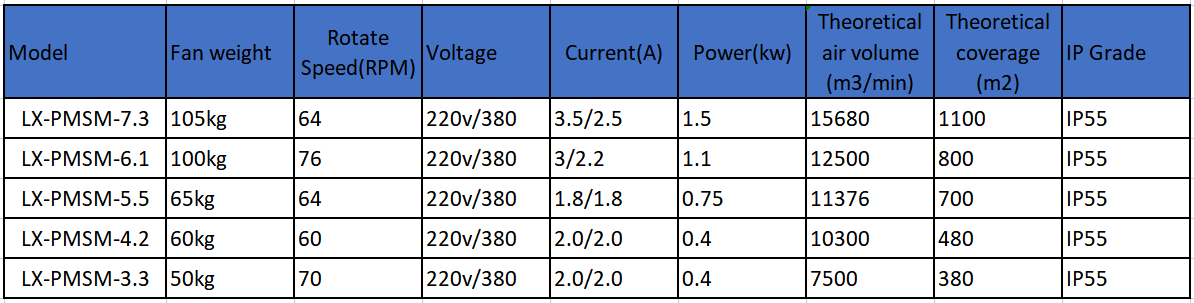

Technical Parameter:



Can customized to 6 blades
